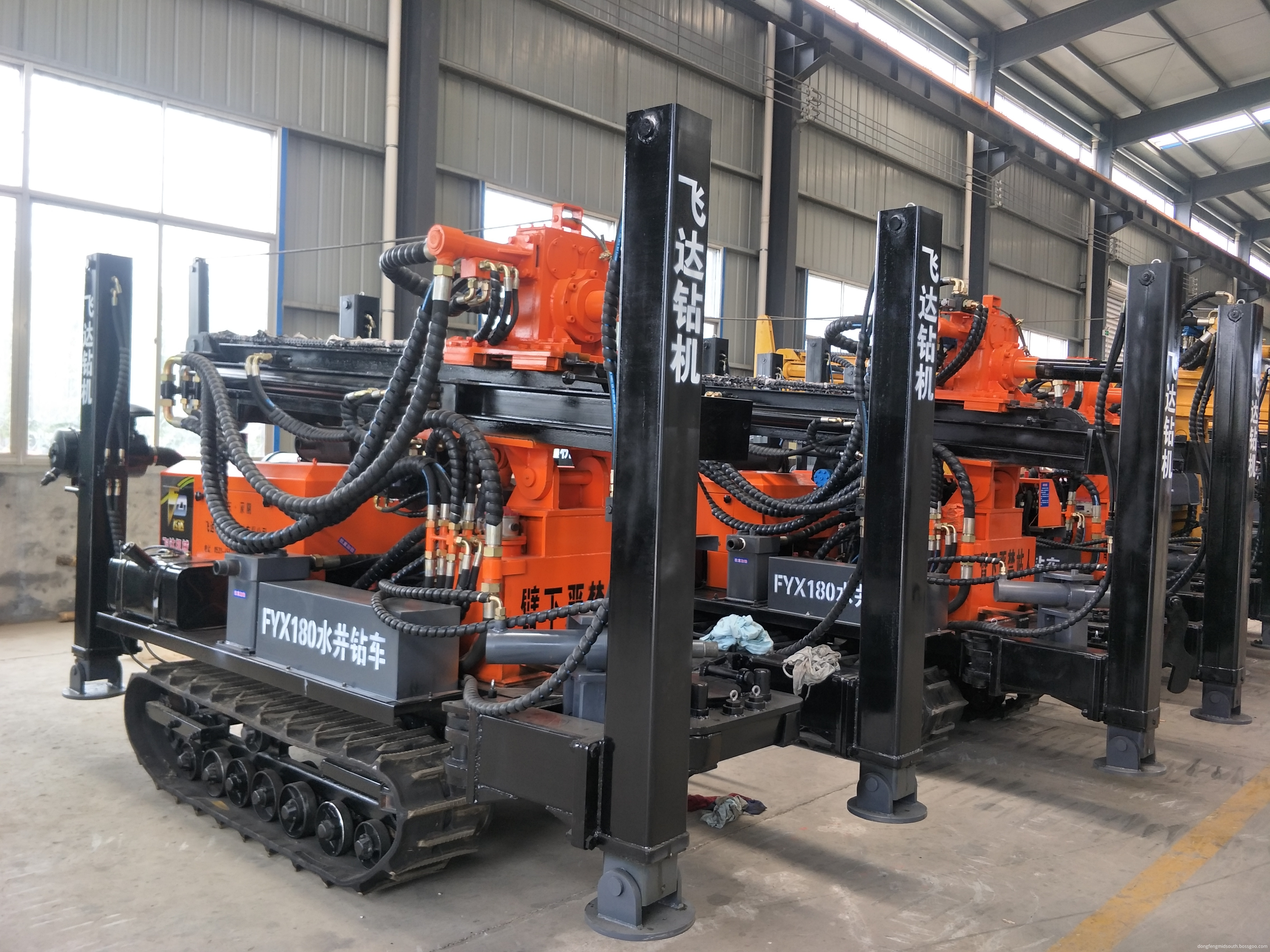

Crawler Drilling Rig air compressors crawler

  • Crawler Drilling Rig air compressors crawler
  • Crawler Drilling Rig air compressors crawler
  • Crawler Drilling Rig air compressors crawler
  • Crawler Drilling Rig air compressors crawler

Crawler Drilling Rig air compressors crawler

    Unit Price: 15900~79600 USD
    Min. Order: 1 Unit
    Packaging: Nude
    Productivity: 500 Units/month
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 500 Units/month
    Certificate: ISO
    HS Code: 8430419000
    Port: Qingdao Port,Shanghai Port,Tianjin Port

Product Description

H6394b65887bc4fbea259a52622de231cx Jpg


The whole machine parameters

Model

YGD-130

YGD-180

YGD-200

Drill hole depth

130m

180m

200m

Maximum opening diameter

Φ75-Φ220mm

Φ75-Φ220mm

Φ75-Φ325mm

Final hole diameter

Φ75mm

Φ75mm

Φ75mm

Drill pipe diameter

Φ42-60mm

Φ42-60mm

Φ42-60mm

Borehole inclination

90°- 75°

90°- 75°

90°- 75°

Power(diesel engine)

13.2/2200kw/r/min

13.2/2200kw/r/min

15/2200kw/r/min

Size

3.8*1.95*2.7m

3.8*1.95*2.7m

3.8*1.95*2.7m

Vertical shaft

Vertical spindle speed

142,285,570r/min

130,480,730,1045r/min

64,28,287,557r/min

Vertical stroke

450mm

450mm

450mm

Crawler chassis

Crawler size/piece

350*90*48mm

350*90*48mm

350*90*48mm

Climbing angle

20°

20°

20°

Moving speed

10km/h

10km/h

10km/h

Hydraulic landing leg valid height

1300mm

1300mm

1300mm

Mud pump

Model

BW160

BW160

BW160

Flow

160L/min

160L/min

160L/min

Maximum pressure

1.3Mpa

1.3Mpa

1.3Mpa

Reciprocating frequency

165times/min

165times/min

165times/min

Inlet hose diameter

Φ51mm

Φ51mm

Φ51mm

Outlet hose diameter

Φ32mm

Φ32mm

Φ32mm

Ha4950c824de34cb1b0366e38e1a3db51O

H9222967e21ea4552a24d30dbc023b35db

H06ed76b8466446659a0356ae287344f4p

working site
