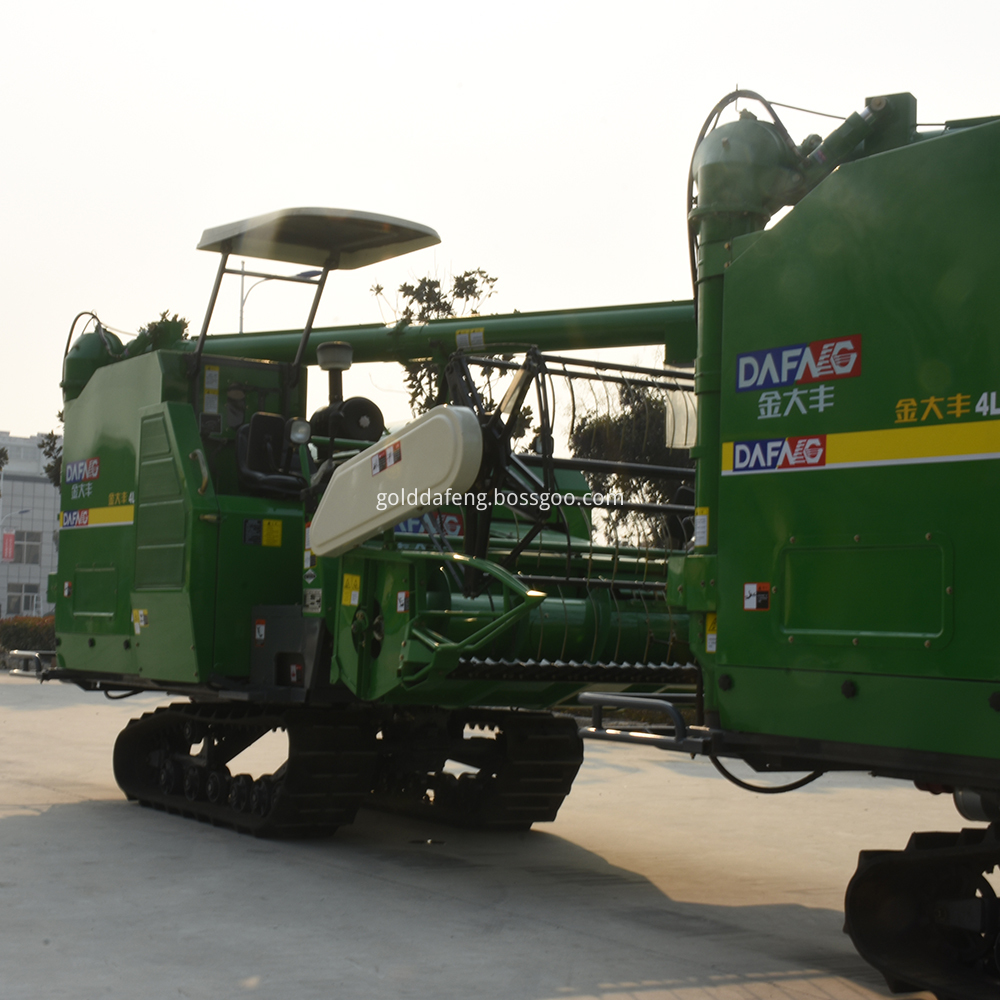

agriculture machine combine harvester rice corn grain wheat

agriculture machine combine harvester rice corn grain wheat

    Unit Price: USD 14000 / Bag/Bags
    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Bag/Bags
    Delivery Time: 3 Days
    Packaging: 6700(L)*3400(W)*3380(H)mm
    Productivity: 400sets/Mon
    Brand: Gold dafeng
    Transportation: Ocean
    Place of Origin: China shandong
    Supply Ability: 400sets/Mon
    Certificate: SGS ISO9001 CE
    HS Code: 84335100
    Port: Qingdao

Basic Info

Model No.: 4LZ-5

Type: Horizontal Cut Harvester

Application: Rice, Corn, Wheat

Power Source: Diesel

Harvest method: Cutting

Drive Type: Vee belt

Transmission: Soft Shaft

Portable Harvester Type: Backpack Type

Certification: SGS, ISO9001:2008, CE

Color: Green

Condition: New

Application Field: Agriculture

Barn Capacity: 1.3m²

Husking Rolls: 5kg/s

Working Width: 2200mm

Working Efficiency: 2666-8000m²/h

Horse Power: 98HP

Dimensions: 5450*2520*2870

Threshing Type: Longitudinal Ruuning Axle Roll

Product Description

Features of Full-feeding Rice Combine Harvester

1) Longitudinal axle flow cylinder, able to reap wheat, rice, beans and corns with efficient threshing.

2) 4-shift speed regulation device and adaptive to harvesting various crops.

3) Intelligent warning system, able to supervise such key parts as rolling drum and fans.

4) Equipped with Yucai 6108/120 engine and featuring huge motor reserve.

5) Deep threaded tires, spreader, pickup, and headers available upon options.

6) Applicable to large-field harvesting.

7) Reinforced front axel, underframe, and main frame.

8) Movable concave clearance adjusting structure and manufacture process with patent.

9) With adjusting structure, increased overall reliability and easier control.

Model

4LZ-2

4LZ-3

Engine Model

495T(optional 4102)

4105

Rated power, kW/rpm

42/2600(48/2600)

55

Feed rate(kg/s)

2

3

Cutting width(m)

2

2.58

Productivity (ha/h)

0.2~0.3

0.3~0.6

Operational Dimensions (L×W×H) (mm)

4900×2400×2800

5545×2975×2900

Total weight(kg)

2700

3100

Min. ground clearance (mm)

268

252

Ground pressure (kPa)

24

Threshing type

Axial flow

Re-threshing device and type

Self-threshing

Cleaning type

Drum sieves,vibration screen and blowing and suction fan

Gearbox

6 speeds forward, 2 speeds backward

Track specification

400×90×46

400×90×48

(width× pitch× No. of teeth) (mm)

Driving speed(km/h)

Forward 0.90~9.88 Backward 0.74~2.66

Grain unloading method

Manual,Automatic

Cab

Shadow shield (optional for cab)

Total losses(%)

Rice 3.5% Wheat 1.5%

Impurity rate(%)

Rice 2.0% Wheat 2.0%

Broken rate(%)

Rice 2.0% Wheat 2.0%

24



14


73


4


6


5



Corn Combine Harvester Planning 02 700 500Htb158cyfs I8kjjy0foq6yfnvxab 1


Our factory with more than 20 years of experience and innovation, including Hydraulic Pressure Disc Harrows, High Box Rotary Tillers, Agriculture Corn Harvester, self-propelled full feed rice combine harvester, Farmer Tractor, Disc Reversible Rotary Plough, Self-propelled Wheat Harvester and so on, offers one of the most complete lines in the industry.
